Crouds 0.4

v0.5 of Crouds; build guide

Build guide

Through hole design. Audio and power sockets are on the PCB. Requires wiring to the footswitch.

Build order:

Resistors

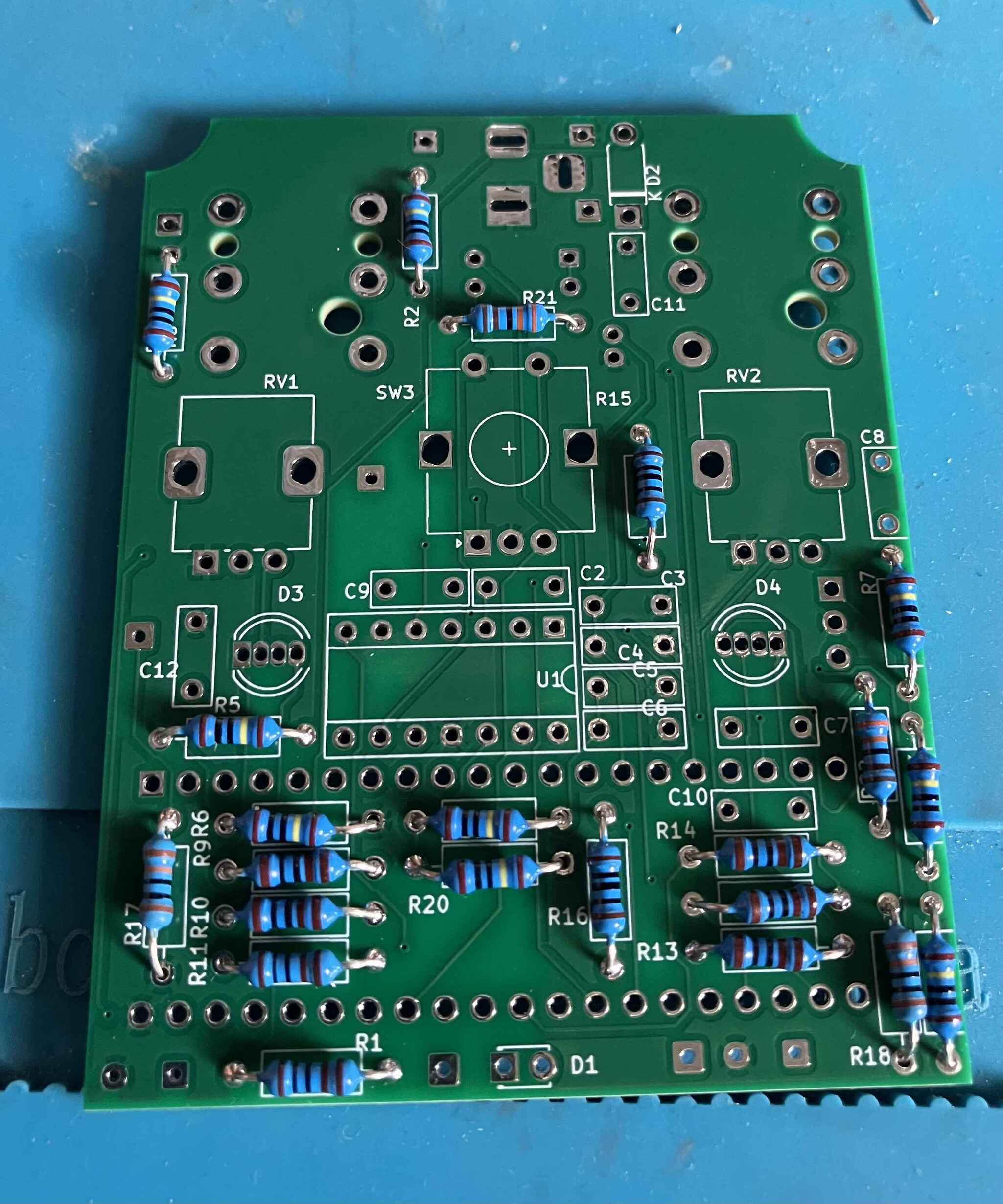

Resistors in place

Build order

  • Resistors
  • Diode
  • Seed socket
  • IC socket
  • Small caps
  • Large caps
  • Pots and encoder
  • DIP switch
  • power socket
  • audio input and output sockets
  • Electrolytic cap
  • Lm7805
  • visual check (use magnifier) of all joints; use stick to check * mechanical
  • power up and check 5v and VCC to Seed correct
  • bypass LED
  • RGB LEDs
  • footswitch
  • momentary footswitches
  • fit TL074 and Seed
  • Power up and test
  • Drill enclosure
  • box it up
  • test
