Prog Pedals - almost open for business
Prog Pedals is now a registered business - pedals coming soon
Prog Pedals is a registered business (based in Australia) and prototyping is going gangbusters.
The 5th prototype has been built and is being tested in the wild…
The 6th prototype is under fabrication with PCBWay
Releases

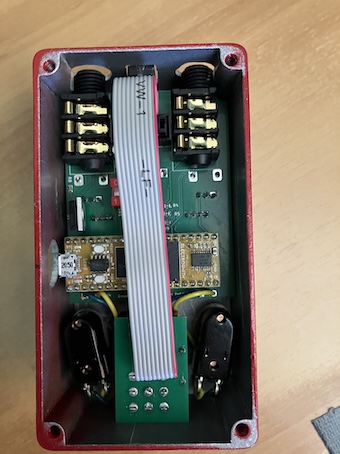

Version 0.5
This is a 125b version, some SMD, and audio and power sockets on the PCB
Four of these have been built and are being used by me and others for testing purposes.
Problems/ observations
- Audio sockets need to be sturdier
Heading to 0.6
- Using Neutrik sockets
- Adding the two footswitches to the bypass footswitch PCB

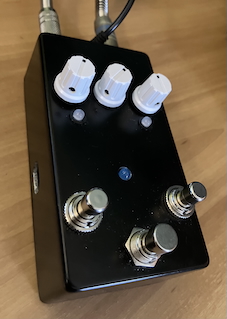

Version 0.4
This is a 125b version, through hole components, and audio and power sockets on the PCB
Four of these have been built and are being used by me and one other for testing purposes.
Problems/ observations
- Holes for the switch wires are too small.
- It can be tricky getting the bypass LED to sit well if a LED holder is being used.
Heading to 0.5
- Will go for SMD resistors, caps and TL074
- Will add an IDC connector, and design a footswitch PCB - wiring a footswitch manually is fiddly and time consuming
